Mini Spot Light

Mini Spot Light manufacturer, 2-30W, OSRAM/CREE COB chips, 8°-60° beam angle. CRI>80/90, ideal for retail and accent lighting.

Products Inquiry

Name :

Tel :

Email :

Message :

PRODUCT INFORMATION

1) Multiple beam angle options (8°-60°) for precise spot lighting control.

2) COB SMD chip technology from OSRAM and CREE for high brightness and color consistency.

3) Compact cut-out sizes from Φ25mm to Φ120mm suitable for retail display and accent lighting.

4) CRI>80 or CRI>90 options with anti-glare design for museum, gallery and retail applications.

5) Two series available: standard slim design and heavy-duty heat sink design for higher power (up to 30W).

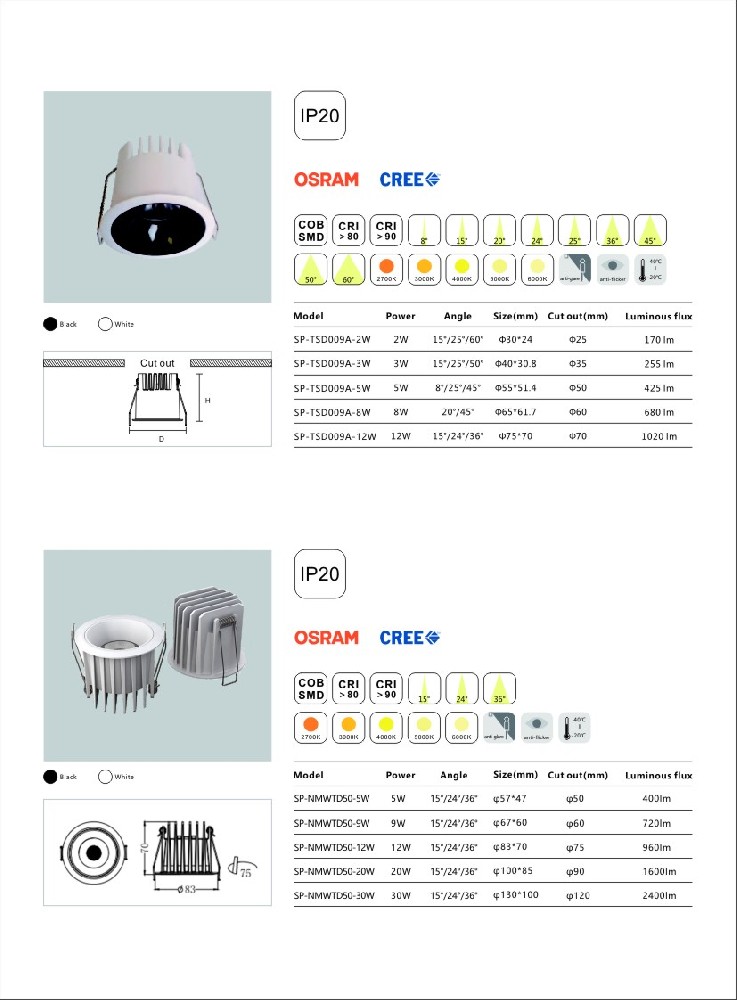

Model	Power	Angle	Size(mm)	Cut out(mm)	Luminous flux
SP-TSD009A-2W	2W	15°/25°/60°	Φ30*24	Φ25	170lm
SP-TSD009A-3W	3W	15°/25°/50°	Φ40*33.8	Φ35	255lm
SP-TSD009A-5W	5W	8°/25°/45°	Φ55*51.4	Φ50	425lm
SP-TSD009A-8W	8W	20°/45°	Φ65*61.7	Φ60	680lm
SP-TSD009A-12W	12W	15°/24°/36°	Φ75*70	Φ70	1020lm

Model	Power	Angle	Size(mm)	Cut out(mm)	Luminous flux
SP-NMWTD5C-5W	5W	15°/24°/36°	Φ57*47	Φ50	400lm
SP-NMWTD5C-9W	9W	15°/24°/36°	Φ67*60	Φ60	720lm
SP-NMWTD5C-12W	12W	15°/24°/36°	Φ83*70	Φ75	960lm
SP-NMWTD5C-20W	20W	15°/24°/36°	Φ130*85	Φ90	1630lm
SP-NMWTD5C-30W	30W	15°/24°/36°	Φ130*100	Φ120	2400lm
