1) Two chip options available: SMD series (OSRAM) and COB series (OSRAM, PHILIPS, CREE, Bridgelux) for different quality tiers.
2) Wide power range from 3W to 30W with luminous flux up to 2700lm.
3) Multiple color temperature options (2700K-6500K) with CRI>80 or CRI>90 for high-end projects.
4) Anti-flicker driver design with beam angle 60°-120° for comfortable, glare-free lighting.
5) IP20 rated, black and white housing options for residential and commercial ceiling installation.

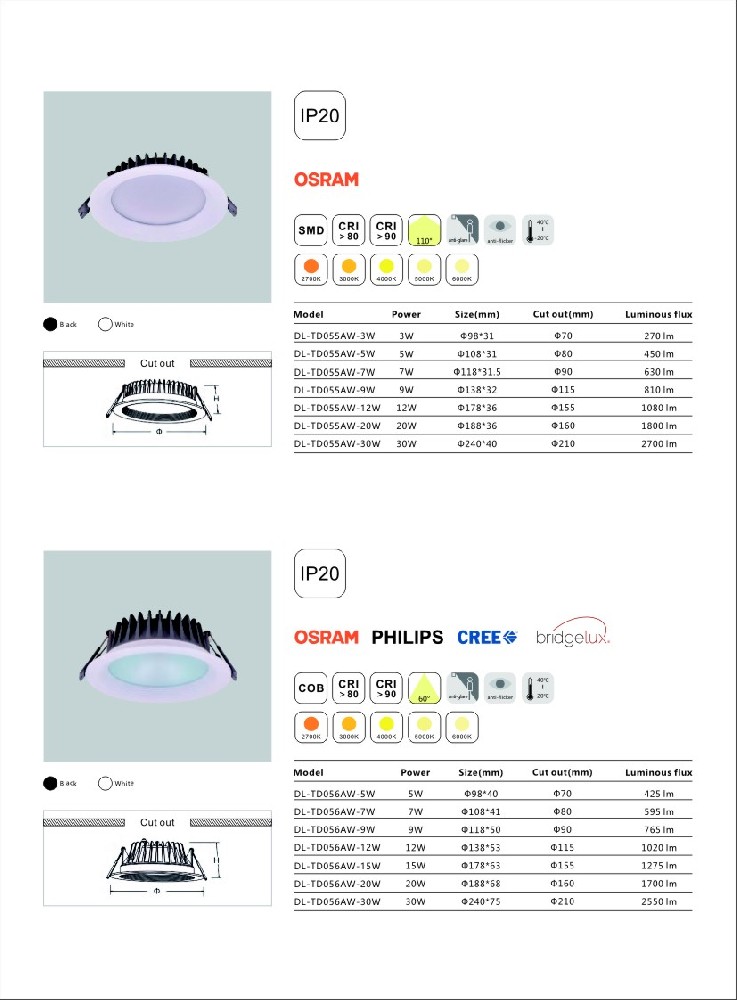

| Model | Power | Size(mm) | Cut out(mm) | Luminous flux |
|---|---|---|---|---|
| DL-TD055AW-3W | 3W | Φ98*31 | Φ70 | 270lm |
| DL-TD055AW-5W | 5W | Φ108*31 | Φ80 | 450lm |
| DL-TD055AW-7W | 7W | Φ118*31.5 | Φ90 | 630lm |
| DL-TD055AW-9W | 9W | Φ138*32 | Φ115 | 810lm |
| DL-TD055AW-12W | 12W | Φ178*36 | Φ155 | 1080lm |
| DL-TD055AW-20W | 20W | Φ188*36 | Φ160 | 1800lm |
| DL-TD055AW-30W | 30W | Φ240*40 | Φ210 | 2700lm |
| Model | Power | Size(mm) | Cut out(mm) | Luminous flux |
|---|---|---|---|---|
| DL-TD056AW-5W | 5W | Φ98*40 | Φ70 | 425lm |
| DL-TD056AW-7W | 7W | Φ108*41 | Φ80 | 595lm |
| DL-TD056AW-9W | 9W | Φ118*50 | Φ90 | 765lm |
| DL-TD056AW-12W | 12W | Φ138*53 | Φ115 | 1020lm |
| DL-TD056AW-15W | 15W | Φ178*53 | Φ155 | 1275lm |
| DL-TD056AW-20W | 20W | Φ188*58 | Φ160 | 1700lm |
| DL-TD056AW-30W | 30W | Φ240*75 | Φ210 | 2550lm |
