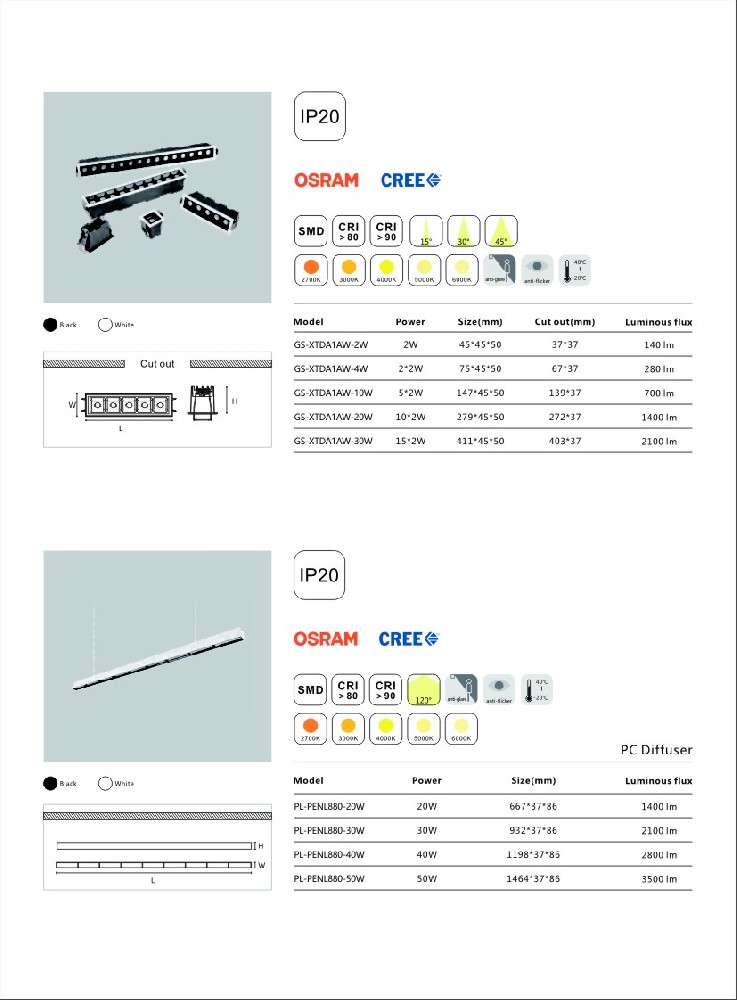

1) Modular grille light design allows flexible length combination (2W to 30W) for recessed ceiling applications.
2) Linear profile light series with PC diffuser for smooth, glare-free illumination up to 50W.
3) SMD chip technology from OSRAM and CREE with CRI>80 or CRI>90 options.
4) Anti-glare lens design suitable for offices, meeting rooms and retail display lighting.
5) Multiple color temperature options (2700K-6500K) to match different interior design styles.
| Model | Power | Size(mm) | Cut out(mm) | Luminous flux |
|---|---|---|---|---|
| GS-XTDA1AW-2W | 2W | 45*45*50 | 37*37 | 140lm |
| GS-XTDA1AW-4W | 2*2W | 75*45*50 | 67*37 | 280lm |
| GS-XTDA1AW-10W | 5*2W | 147*45*50 | 139*37 | 700lm |
| GS-XTDA1AW-20W | 10*2W | 279*45*50 | 272*37 | 1400lm |
| GS-XTDA1AW-30W | 15*2W | 411*45*50 | 403*37 | 2100lm |
| Model | Power | Size(mm) | Luminous flux |
|---|---|---|---|
| PL-PENL880-20W | 20W | 667*37*86 | 1400lm |
| PL-PENL880-30W | 30W | 932*37*86 | 2100lm |
| PL-PENL880-40W | 40W | 1198*37*86 | 2800lm |
| PL-PENL880-50W | 50W | 1464*37*85 | 3500lm |
