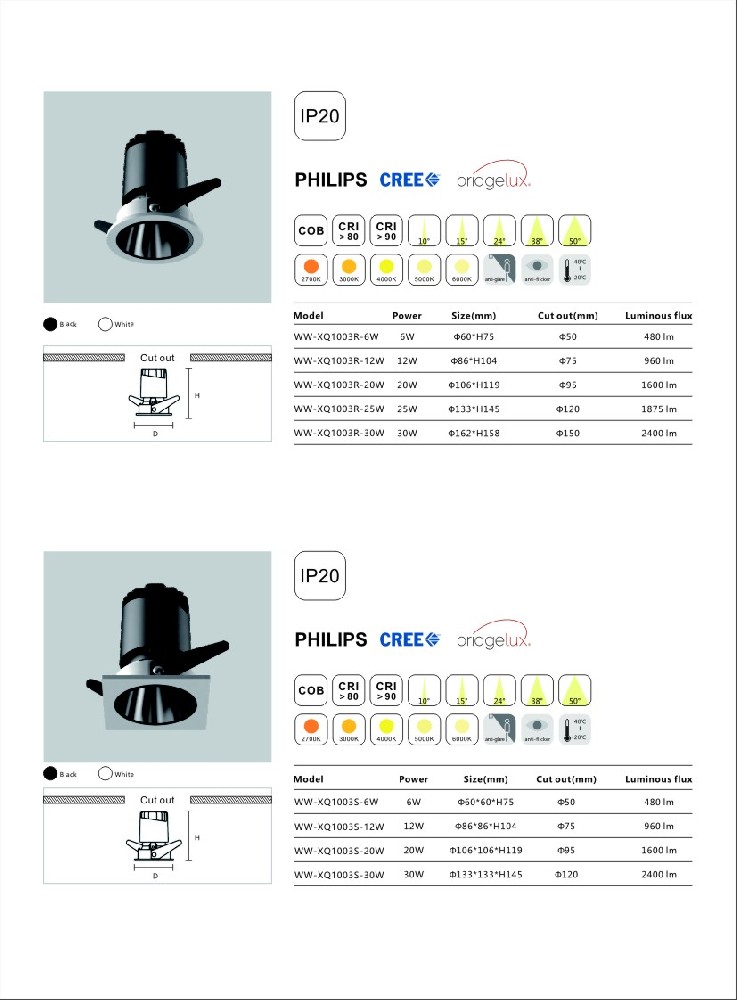

1) Round and square housing options (WW-XQ1003R / WW-XQ1003S) to match different architectural styles.
2) Adjustable beam angle (10°-50°) for flexible wall washing and accent lighting effects.
3) COB chip technology from PHILIPS, CREE and Bridgelux with CRI>80 or CRI>90.
4) Power range from 6W to 30W with luminous flux up to 2400lm.
5) Ideal for facade lighting, art gallery walls and architectural highlight projects.
| Model | Power | Size(mm) | Cut out(mm) | Luminous flux |
|---|---|---|---|---|
| WW-XQ1003R-6W | 6W | Φ60*H75 | Φ50 | 480lm |
| WW-XQ1003R-12W | 12W | Φ86*H104 | Φ75 | 960lm |
| WW-XQ1003R-20W | 20W | Φ106*H119 | Φ95 | 1600lm |
| WW-XQ1003R-25W | 25W | Φ133*H145 | Φ120 | 1875lm |
| WW-XQ1003R-30W | 30W | Φ162*H158 | Φ150 | 2400lm |
| Model | Power | Size(mm) | Cut out(mm) | Luminous flux |
|---|---|---|---|---|
| WW-XQ1003S-6W | 6W | Φ60*60*H75 | Φ50 | 480lm |
| WW-XQ1003S-12W | 12W | Φ86*86*H104 | Φ75 | 960lm |
| WW-XQ1003S-20W | 20W | Φ106*106*H119 | Φ95 | 1600lm |
| WW-XQ1003S-30W | 30W | Φ133*133*H145 | Φ120 | 2400lm |
