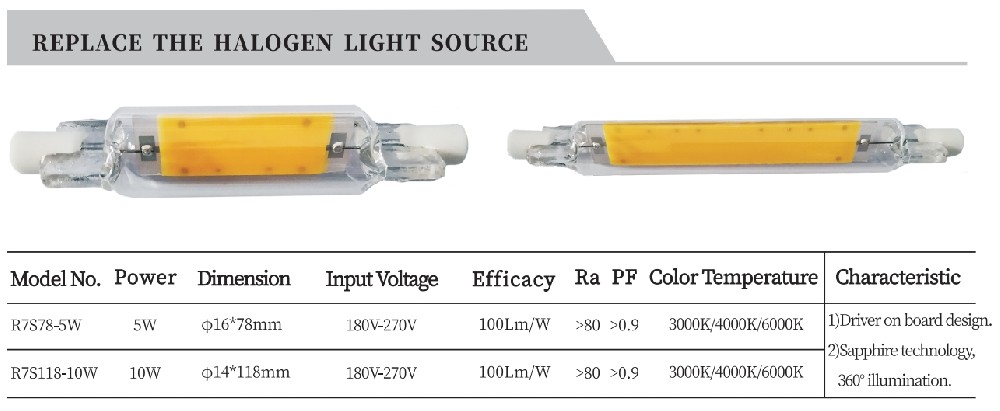

Replace the Hologen Light Source

R7S COB LED module replacing halogen light source, 5-10W, 360° illumination. Sapphire technology, 3000K-6000K CCT options available.

Products Inquiry

Name :

Tel :

Email :

Message :

PRODUCT INFORMATION

1) Direct replacement for traditional R7S halogen light sources, no fixture modification needed.

2) Sapphire technology ensures excellent heat dissipation and long lifespan.

3) 360° omnidirectional illumination matches the original halogen lighting effect.

4) Multiple color temperature options (3000K/4000K/6000K) for different applications.

5) Driver-on-board design with stable PF>0.9 and high efficacy up to 100Lm/W.

Model No.	Power	Dimension	Input Voltage	Efficacy	Ra	PF	Color Temperature	Characteristic
R7S78-5W	5W	Φ16*78mm	180V-270V	100Lm/W	>80	>0.9	3000K/4000K/6000K	Driver on board design, sapphire technology, 360° illumination
R7S118-10W	10W	Φ14*118mm	180V-270V	100Lm/W	>80	>0.9	3000K/4000K/6000K	Driver on board design, sapphire technology, 360° illumination
