1) True COB structure with concentrated light source for sharp beam angle control.
2) Three sizes (Φ36mm, Φ46mm, Φ56mm) covering 7W to 38W power range.
3) Built-in dimmable IC compatible with common dimmer systems.
4) Surge protection (2KV) and OTP/OVP/OCP for long-term reliability.
5) Multiple color temperatures (3000K/4000K/6000K) suitable for downlights, track lights and spotlights.

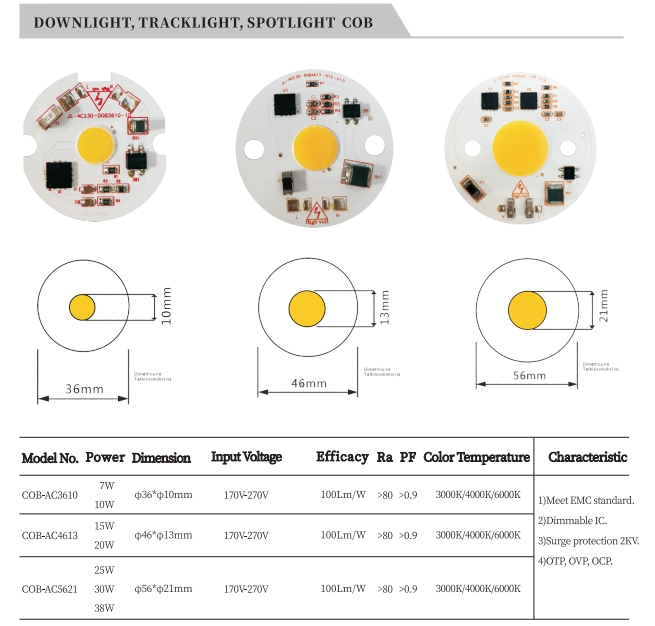

| Model No. | Power | Dimension | Input Voltage | Efficacy | Ra | PF | Color Temperature | Characteristic |
|---|---|---|---|---|---|---|---|---|
| COB-AC3610 | 7W / 10W | Φ36*Φ10mm | 170V-270V | 100Lm/W | >80 | >0.9 | 3000K/4000K/6000K | Meet EMC standard, Dimmable IC, Surge protection 2KV, OTP/OVP/OCP |
| COB-AC4613 | 15W / 20W | Φ46*Φ13mm | 170V-270V | 100Lm/W | >80 | >0.9 | 3000K/4000K/6000K | |
| COB-AC5621 | 25W / 30W / 38W | Φ56*Φ21mm | 170V-270V | 100Lm/W | >80 | >0.9 | 3000K/4000K/6000K |
