1) Wide power range from 30W to 300W covers high bay, floodlight and tunnel lighting needs.
2) Multiple rectangular and round PCB shapes fit various fixture housings.
3) High efficacy (120Lm/W) with stable PF>0.9 for energy-saving large-scale projects.
4) Reliable performance under long working hours for industrial and tunnel applications.
5) Custom power, dimension and voltage available for project-specific requirements.

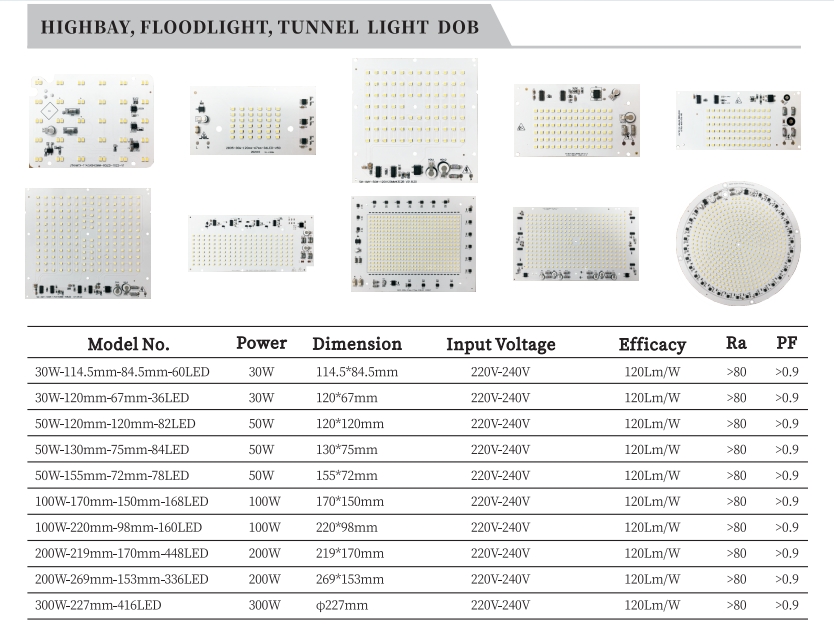

Highbay, Floodlight, Tunnel Light DOB Module Specifications
| Model No. | Power | Dimension | Input Voltage | Efficacy | Ra | PF |
|---|---|---|---|---|---|---|
| 30W-114.5mm-84.5mm-60LED | 30W | 114.5*84.5mm | 220V-240V | 120Lm/W | >80 | >0.9 |
| 30W-120mm-67mm-36LED | 30W | 120*67mm | 220V-240V | 120Lm/W | >80 | >0.9 |
| 50W-120mm-120mm-82LED | 50W | 120*120mm | 220V-240V | 120Lm/W | >80 | >0.9 |
| 50W-130mm-75mm-84LED | 50W | 130*75mm | 220V-240V | 120Lm/W | >80 | >0.9 |
| 50W-155mm-72mm-78LED | 50W | 155*72mm | 220V-240V | 120Lm/W | >80 | >0.9 |
| 100W-170mm-150mm-168LED | 100W | 170*150mm | 220V-240V | 120Lm/W | >80 | >0.9 |
| 100W-220mm-98mm-160LED | 100W | 220*98mm | 220V-240V | 120Lm/W | >80 | >0.9 |
| 200W-219mm-170mm-448LED | 200W | 219*170mm | 220V-240V | 120Lm/W | >80 | >0.9 |
| 200W-269mm-153mm-336LED | 200W | 269*153mm | 220V-240V | 120Lm/W | >80 | >0.9 |
| 300W-227mm-416LED | 300W | Φ227mm | 220V-240V | 120Lm/W | >80 | >0.9 |
