Dimming, 3CCT, Color Change DOB

Dimming, 3CCT & RGB Color Change DOB module, 4-180W. TRIAC dimmable, low flicker, smart CCT switch. Ideal for smart lighting projects.

Products Inquiry

Name :

Tel :

Email :

Message :

PRODUCT INFORMATION

1) Supports TRIAC dimming, 3CCT color temperature switching and RGB color change functions.

2) Flexible control options: 3-4-6 switch for CCT selection or RGB smart control.

3) Stable low-flicker output (PF>0.9) for comfortable smart lighting environments.

4) Power range from 4W to 180W covers both small fixtures and large RGB flood lights.

5) Ideal for smart home, hospitality and decorative lighting projects.

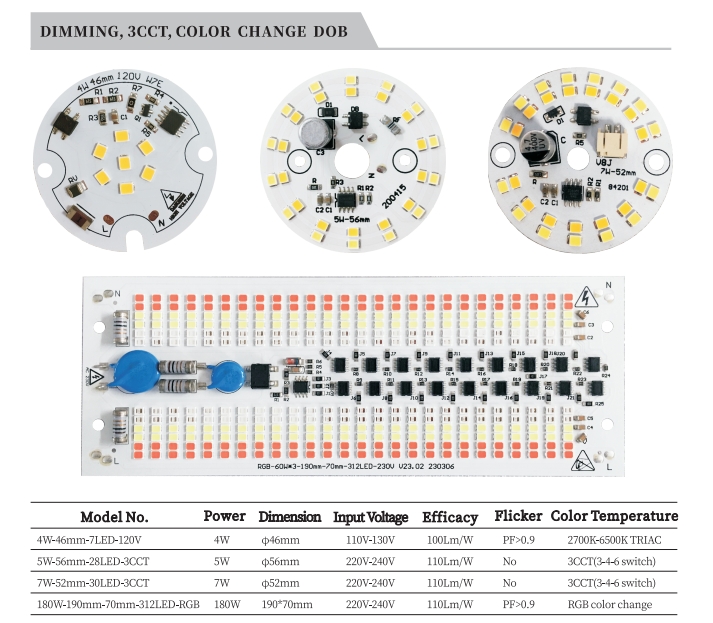

Dimming, 3CCT, Color Change DOB Module Specifications

Model No.	Power	Dimension	Input Voltage	Efficacy	Flicker	Color Temperature
4W-46mm-7LED-120V	4W	Φ46mm	110V-130V	100Lm/W	PF>0.9	2700K-6500K TRIAC
5W-56mm-28LED-3CCT	5W	Φ56mm	220V-240V	110Lm/W	No	3CCT(3-4-6 switch)
7W-52mm-30LED-3CCT	7W	Φ52mm	220V-240V	110Lm/W	No	3CCT(3-4-6 switch)
180W-190mm-70mm-312LED-RGB	180W	190*70mm	220V-240V	110Lm/W	PF>0.9	RGB color change
